本文介绍ggplot2包绘制盒箱图。盒箱图可用于表示x轴是离散变量，y轴是连续变量的分布情况。我们逐步绘制盒箱图，步骤如下：

第一步：R包管理

1if (!require("pacman")) {
2  install.packages("pacman")
3  require("pacman")
4}
5p_load(datasets, ggplot2, ggthemes, grid, dplyr, RColorBrewer)

第二步：数据加载和理解

1data(airquality)
2airquality <- airquality %>%
3  mutate(Month = factor(Month,
4                        labels = c("May", "Jun", "Jul", "Aug", "Sep")))

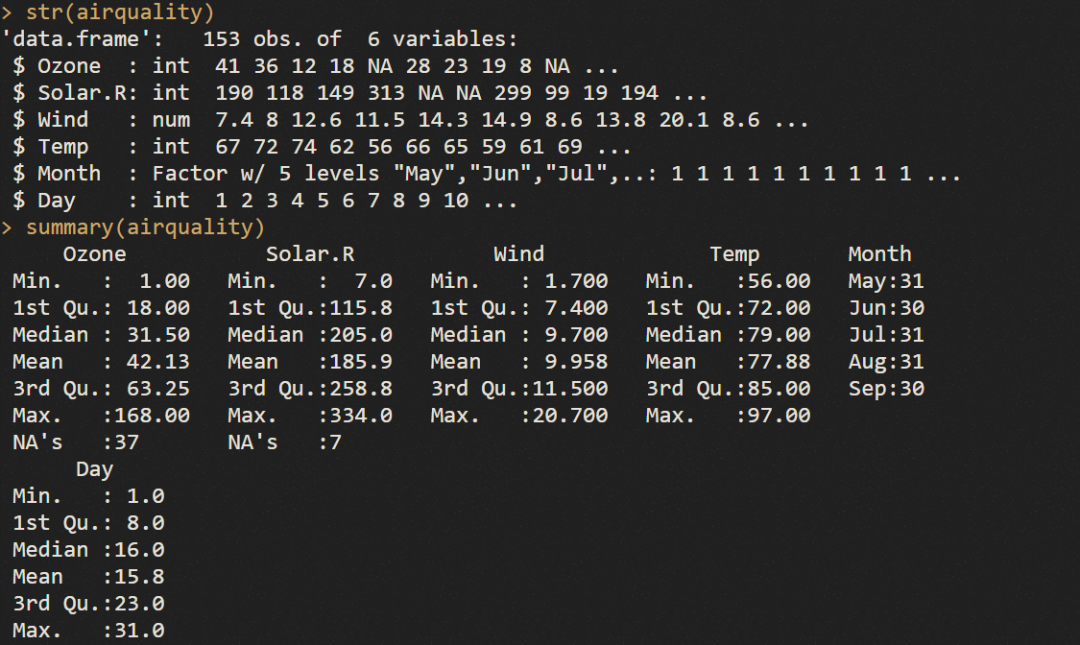

5str(airquality)
6summary(airquality)

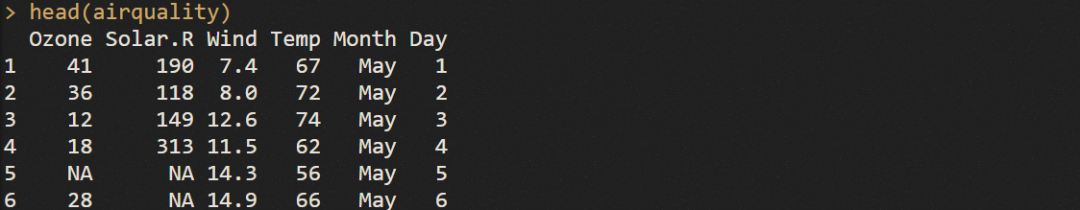

7head(airquality)

第三步：逐步绘制盒箱图

1）基本盒箱图

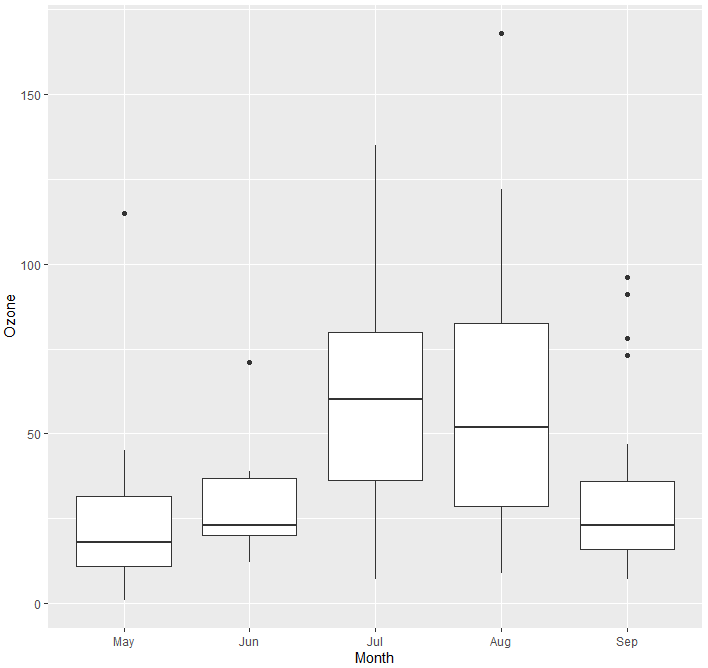

p1 <-  ggplot(airquality, aes(x = Month, y = Ozone)) +  geom_boxplot()p1

2）定义x轴标签

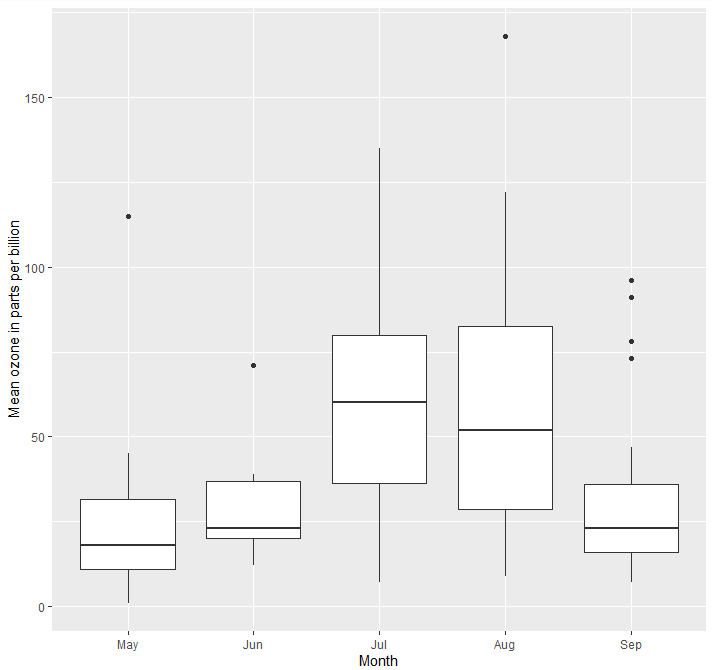

p2 <- p1 + scale_x_discrete(name = "Month") +  scale_y_continuous(name = "Mean ozone in parts per billion")p2

3）调整y轴刻度

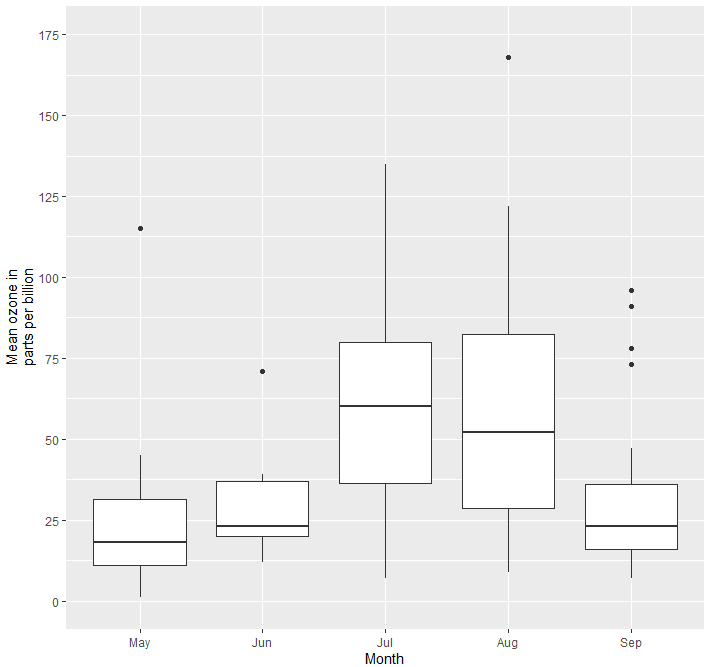

p3 <- p1 + scale_x_discrete(name = "Month") +  scale_y_continuous(name = "Mean ozone innparts per billion",                   breaks = seq(0, 175, 25), limits = c(0, 175))p3

4）添加标题

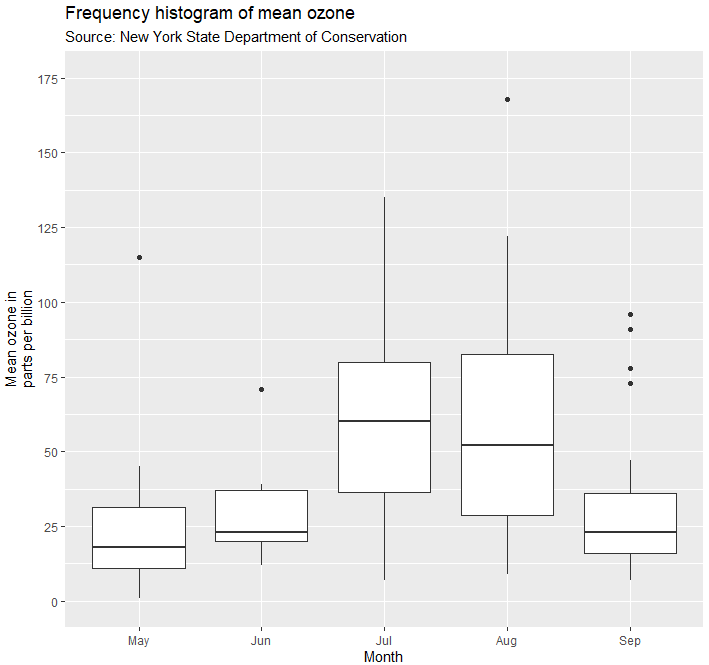

p4 <- p3 +  labs(title = "Frequency histogram of mean ozone",       subtitle = "Source: New York State Department of Conservation")p4

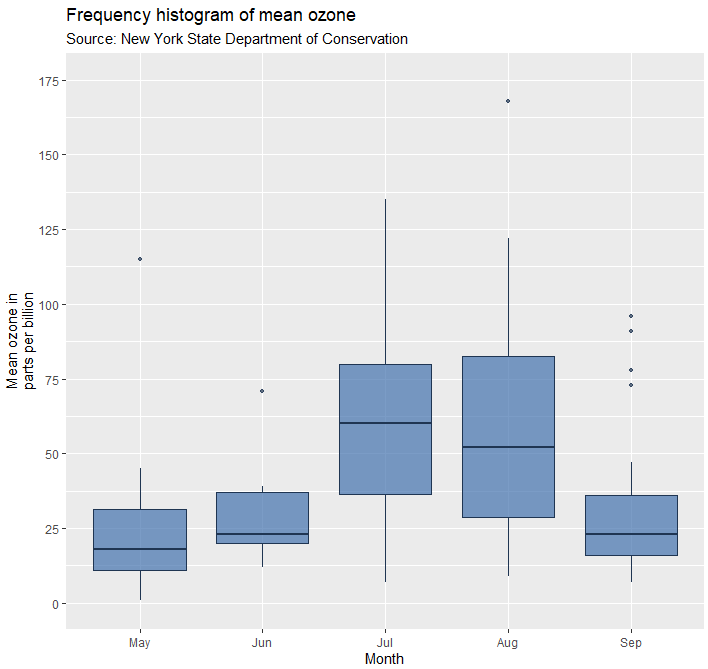

5）修改盒箱的颜色

fill <- "#4271AE"line <- "#1F3552"p5 <-  ggplot(airquality, aes(x = Month, y = Ozone)) +  geom_boxplot(fill = fill, colour = line, alpha = 0.7,               outlier.colour = "#1F3552",                outlier.shape = 20,               outlier.size = 2) +  scale_y_continuous(name = "Mean ozone innparts per billion",                     breaks = seq(0, 175, 25), limits = c(0, 175)) +  scale_x_discrete(name = "Month") +  labs(title = "Frequency histogram of mean ozone",       subtitle = "Source: New York State Department of Conservation")p5

6）字体设置

windowsFonts(  # 中文字体  lishu = windowsFont(family = "LiSu"),            # 隶书  yahei = windowsFont(family = "Microsoft YaHei"), # 微软雅黑  xinwei = windowsFont(family = "STXingwei"),      # 华文新魏  kaiti = windowsFont(family = "KaiTi"),           # 楷体  heiti = windowsFont(family = "SimHei"),          # 黑体  # 英文字体  arial = windowsFont(family = "Arial"),             # Arial字体  newman = windowsFont(family = "Times New Roman"),  #Times New Roman字体     hand = windowsFont(family = "Lucida Calligraphy"), # Lucida手写体  Helvetica = windowsFont(family = "Helvetica")      # 印刷体)

7）主题装饰

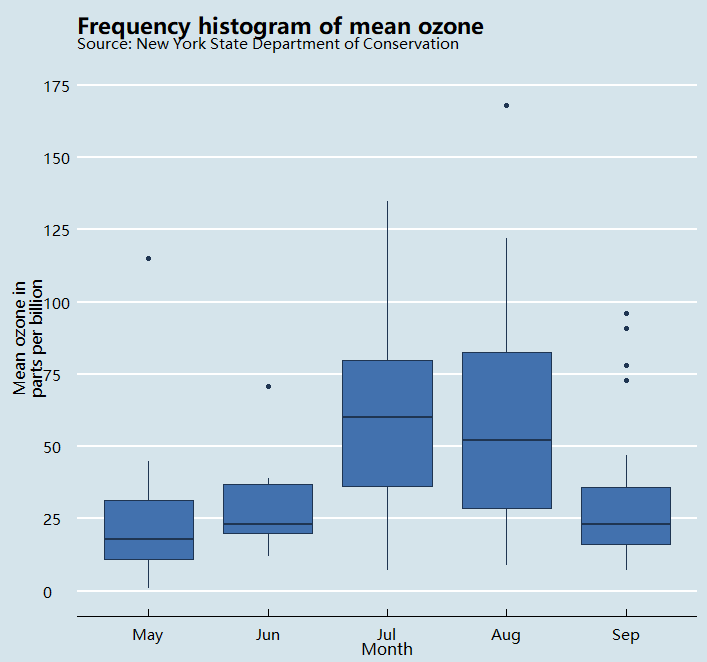

主题一：经济学杂志

p6_1 <- ggplot(airquality, aes(x = Month, y = Ozone)) +  geom_boxplot(fill = fill, colour = line) +  scale_y_continuous(name = "Mean ozone innparts per billion",                     breaks = seq(0, 175, 25), limits = c(0, 175)) +  scale_x_discrete(name = "Month") +  labs(title = "Frequency histogram of mean ozone",       subtitle = "Source: New York State Department of Conservation") +  theme_economist() + scale_fill_economist() +  theme(axis.line.x = element_line(size = .5, colour = "black"),        axis.title = element_text(size = 12),        legend.position = "bottom",        legend.direction = "horizontal",        legend.box = "horizontal",        legend.text = element_text(size = 10),        text = element_text(family = "yahei"),        plot.title = element_text(family = "yahei"))p6_1

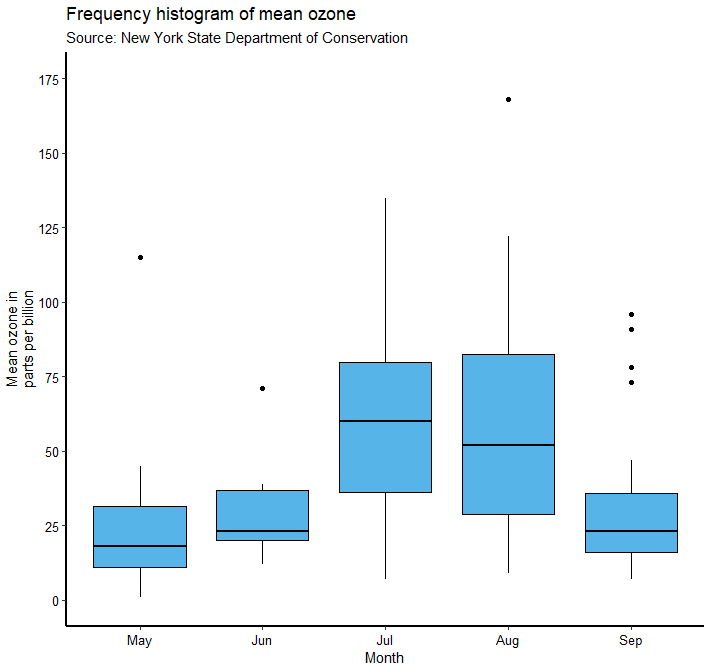

主题二：简洁主题

p6_2 <- ggplot(airquality, aes(x = Month, y = Ozone)) +  geom_boxplot(colour = "black", fill = "#56B4E9") +  scale_y_continuous(name = "Mean ozone innparts per billion",                     breaks = seq(0, 175, 25), limits = c(0, 175)) +  scale_x_discrete(name = "Month") +  labs(title = "Frequency histogram of mean ozone",       subtitle = "Source: New York State Department of Conservation") +  theme(axis.line.x = element_line(size = 1, colour = "black"),        axis.line.y = element_line(size = 1, colour = "black"),        axis.text.x = element_text(colour = "black", size = 10),        axis.text.y = element_text(colour = "black", size = 10),        legend.position = "bottom",        legend.direction = "horizontal",        legend.box = "horizontal",        legend.key = element_blank(),        panel.grid.major = element_blank(),        panel.grid.minor = element_blank(),        panel.background = element_blank(),        plot.title = element_text(family = "Helvetica"),        text = element_text(family = "Helvetica"))p6_2

8）分组观察

# 数据处理airquality_trimmed <- airquality %>%  filter(Month %in% c("Jul", "Aug", "Sep")) %>%  mutate(Temp.f = factor(ifelse(Temp > mean(Temp), 1, 0),                         labels = c("Low temp ", "High temp ")))

8.1）分面板

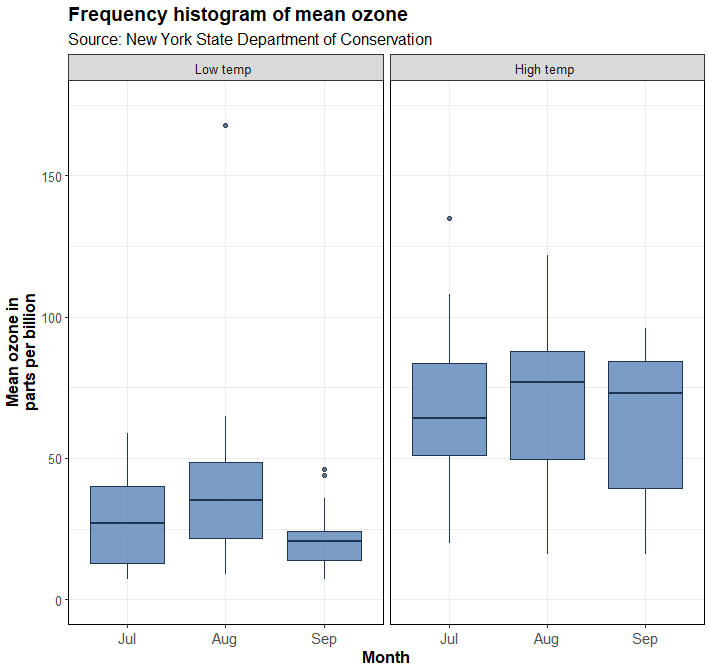

p8_1 <- ggplot(airquality_trimmed, aes(x = Month, y = Ozone)) +  geom_boxplot(fill = fill, colour = line,               alpha = 0.7) +  scale_y_continuous(name = "Mean ozone innparts per billion",                     breaks = seq(0, 175, 50), limits = c(0, 175)) +  scale_x_discrete(name = "Month") +  labs(title = "Frequency histogram of mean ozone",       subtitle = "Source: New York State Department of Conservation") +  theme_bw() +  theme(plot.title = element_text(size = 14, family = "Tahoma", face = "bold"),        panel.border = element_rect(colour = "black", fill = NA, size = .5),        text = element_text(size = 12, family = "Tahoma"),        axis.title = element_text(face = "bold"),        axis.text.x = element_text(size = 11)) +  facet_grid(. ~ Temp.f)p8_1

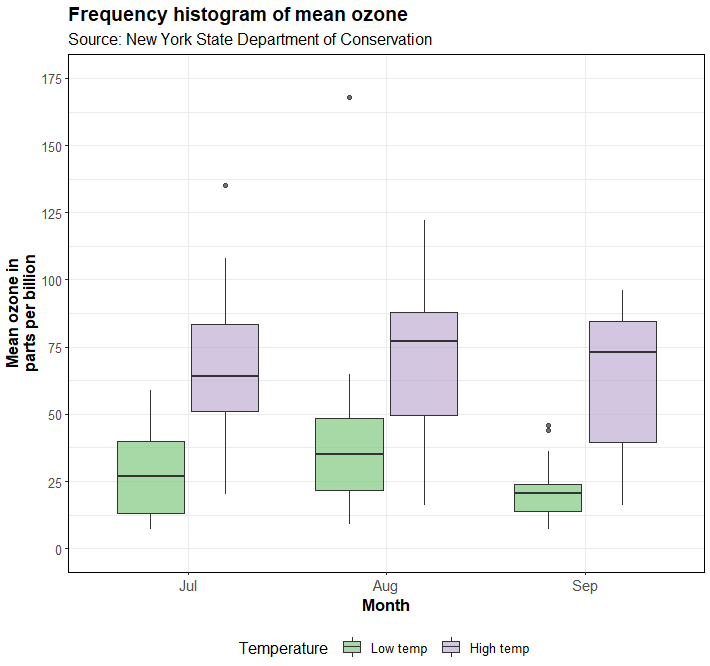

8.2）同一个图形表示

p8_2 <- ggplot(airquality_trimmed, aes(x = Month, y = Ozone, fill = Temp.f)) +  geom_boxplot(alpha = 0.7) +  scale_y_continuous(name = "Mean ozone innparts per billion",                     breaks = seq(0, 175, 25), limits = c(0, 175)) +  scale_x_discrete(name = "Month") +  labs(title = "Frequency histogram of mean ozone",       subtitle = "Source: New York State Department of Conservation") +  theme_bw() +  theme(plot.title = element_text(size = 14, family = "Tahoma", face = "bold"),        panel.border = element_rect(colour = "black", fill = NA, size = .5),        text = element_text(size = 12, family = "Tahoma"),        axis.title = element_text(face = "bold"),        axis.text.x = element_text(size = 11),        legend.position = "bottom") +  scale_fill_brewer(palette = "Accent") +  labs(fill = "Temperature ")p8_2

关于盒箱图，有什么问题，请留言。
